Industrial Walkway W2
A manufacturing-ready industrial walkway system developed from as-built site requirements for a client access route. The assembly combines modular landing platforms, long walkway runs, stair access, handrail guarding, toe boards, rubber foot pads, adjustable stud supports, and PFC support beds into a coordinated fabrication package.
Project Overview
The W2 walkway package was produced to convert site access requirements into a controlled SolidWorks assembly and fabrication drawing set. The model resolves the platform width, landing positions, stair access, handrail continuity, grating layout, support feet, toe boards, and bolted details before release to manufacture.
Project Category
Industrial access walkway / platform
Walkway Width
850mm nominal access width
Drawing Type
GA, fabrication, assembly, and parts drawings
Main Components
PFC beds, grating panels, 33.2mm handrails, toe boards, stair stringers, rubber foot pads, M20 stud supports, channel nuts, U-bolts
Material
Mild steel structural members and fabricated steel components
Finish
Hot Dip Galvanised to BS EN ISO 1461
Software
SolidWorks
Output
3D assembly summary, GLB web model, redacted fabrication PDFs, redacted parts drawings, BOM-ready structure
Status
Public-safe case study prepared
Engineering Challenge
The main engineering challenge was coordinating a long access route around fixed site conditions while keeping the system practical for fabrication, galvanising, delivery, and installation. The design needed repeatable support details, clear grating breakdowns, safe handrail transitions, and shop-floor drawings that reduce interpretation errors.
Design Solution
The final solution uses an 850mm-wide modular steel walkway with separate landing sections, PFC support beds, 33.2mm handrail assemblies, rubber isolation feet, M20 stud adjustment, toe boards, channel-nut fixings, and detailed part drawings. The public-facing deliverable package uses redacted fabrication PDFs, a BOM-ready assembly summary, and a GLB model for website inspection.
Key Features
- 850mm-wide modular walkway route with long access run and landing platforms
- PFC support-bed structure with rubber foot pads and adjustable M20 stud supports
- 33.2mm handrail guarding, toe boards, stair access, and transition rails
- Grating panel layout coordinated with support positions and fixing access
- Fabrication drawing pack covering GA views, parts, BOM structure, and installation clarity
- Website-ready GLB model for visual inspection of the complete assembly
Project Deliverables
- SolidWorks assembly model and manufacturing-ready part structure
- Redacted general arrangement and fabrication drawing PDF for the W2 walkway
- Redacted parts drawing PDF for shop-floor cutting and fabrication reference
- BOM-ready component organisation covering grating, rails, stringers, brackets, pads, and fixings
- GLB review model for web presentation
- Confidential manufacturing identifiers removed from public reference files
CAD Model & Drawing References

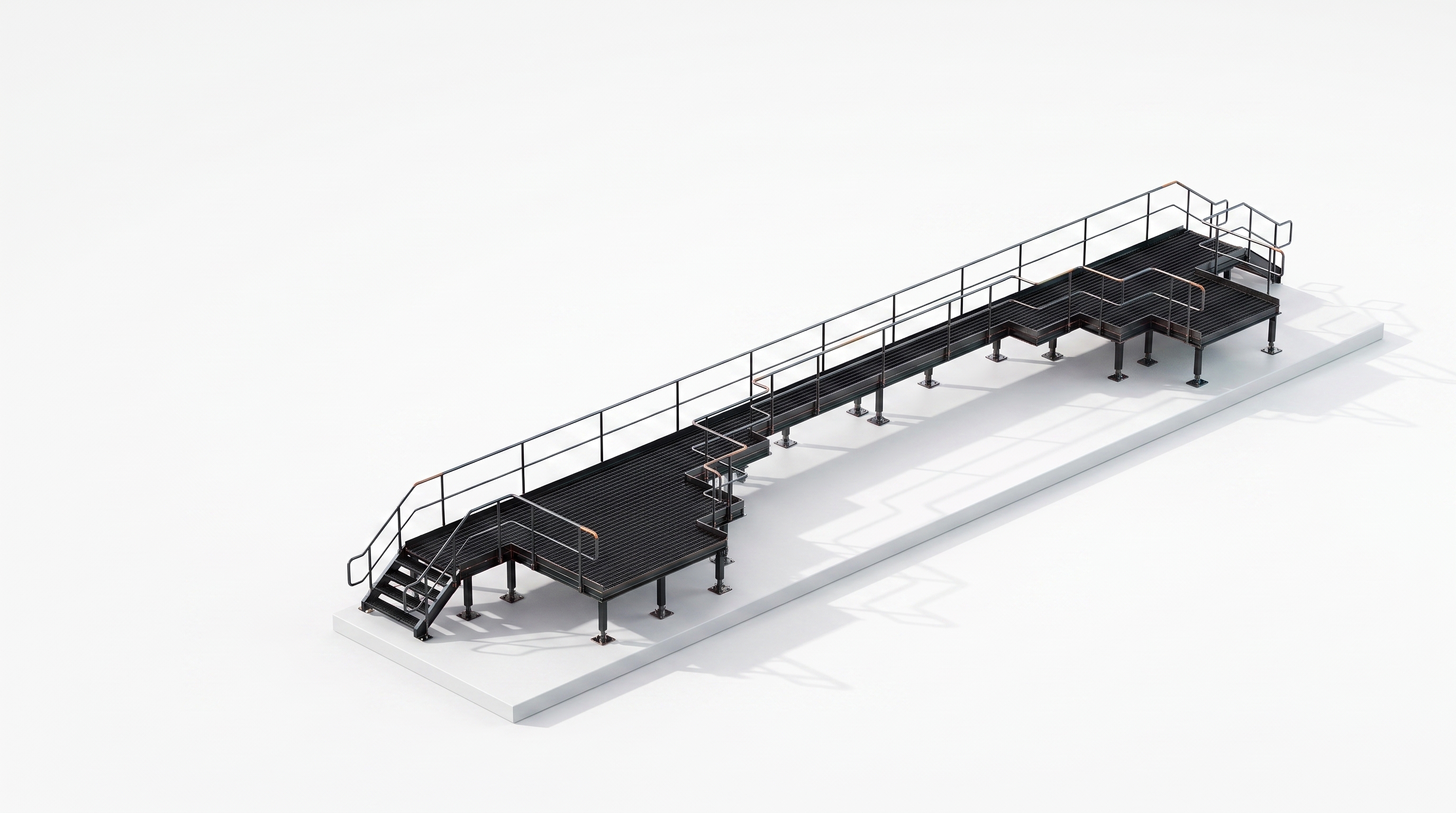

RenderW2 Hero Render
Clean isometric render of the full 850mm-wide industrial walkway assembly.
Interactive GLB Model
Browser-ready GLB model for inspecting the complete walkway geometry.
Redacted Fabrication Drawing Pack
Public-safe assembly and fabrication drawing pack with confidential identifiers removed.
Redacted Parts Drawing Pack
Public-safe parts drawing pack with title blocks and internal references redacted.
CAD Laboratory
Interactive model review is planned for a later development phase.
